Foam Tool Organizer for
5 Nupla Hammers, 1 Mayhew Pry Bar, and 9 Mayhew Punches

Overview

5 Nupla Hammers, 1 Mayhew Pry Bar, and 9 Mayhew Punches

Fits (5) hammers, (1) pry bar, and (9) punches.

Recommended for 3 min drawer height.

Drawer Size
23-3/4 X 17-3/4 inches

$64.40



Foam Organizer for 5 Nupla Hammers, 1 Mayhew Pry Bar, and 9 Mayhew Punches

larger image

Foam Organizer for 5 Nupla Hammers, 1 Mayhew Pry Bar, and 9 Mayhew Punches

larger image

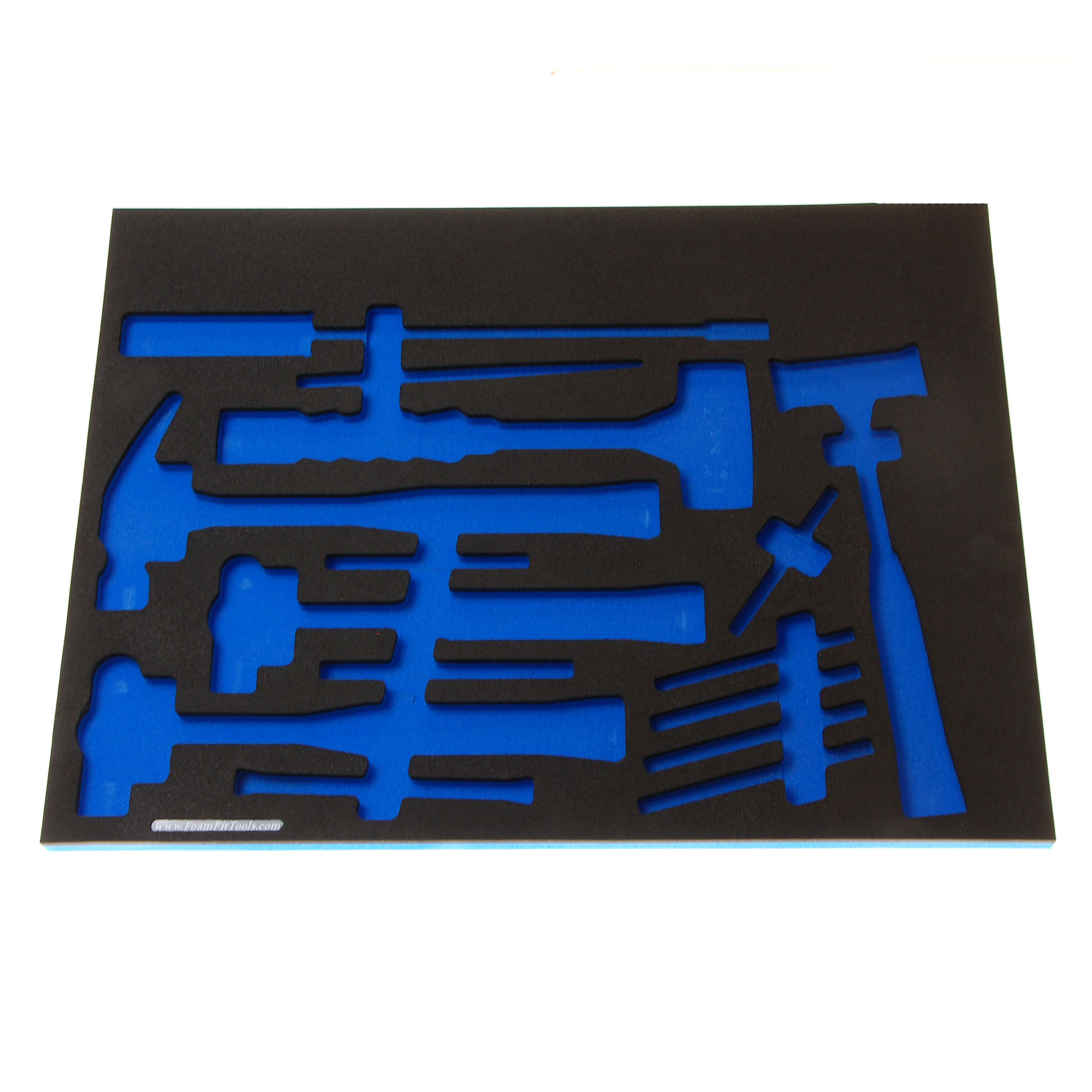

note: tools are not included

Tool List

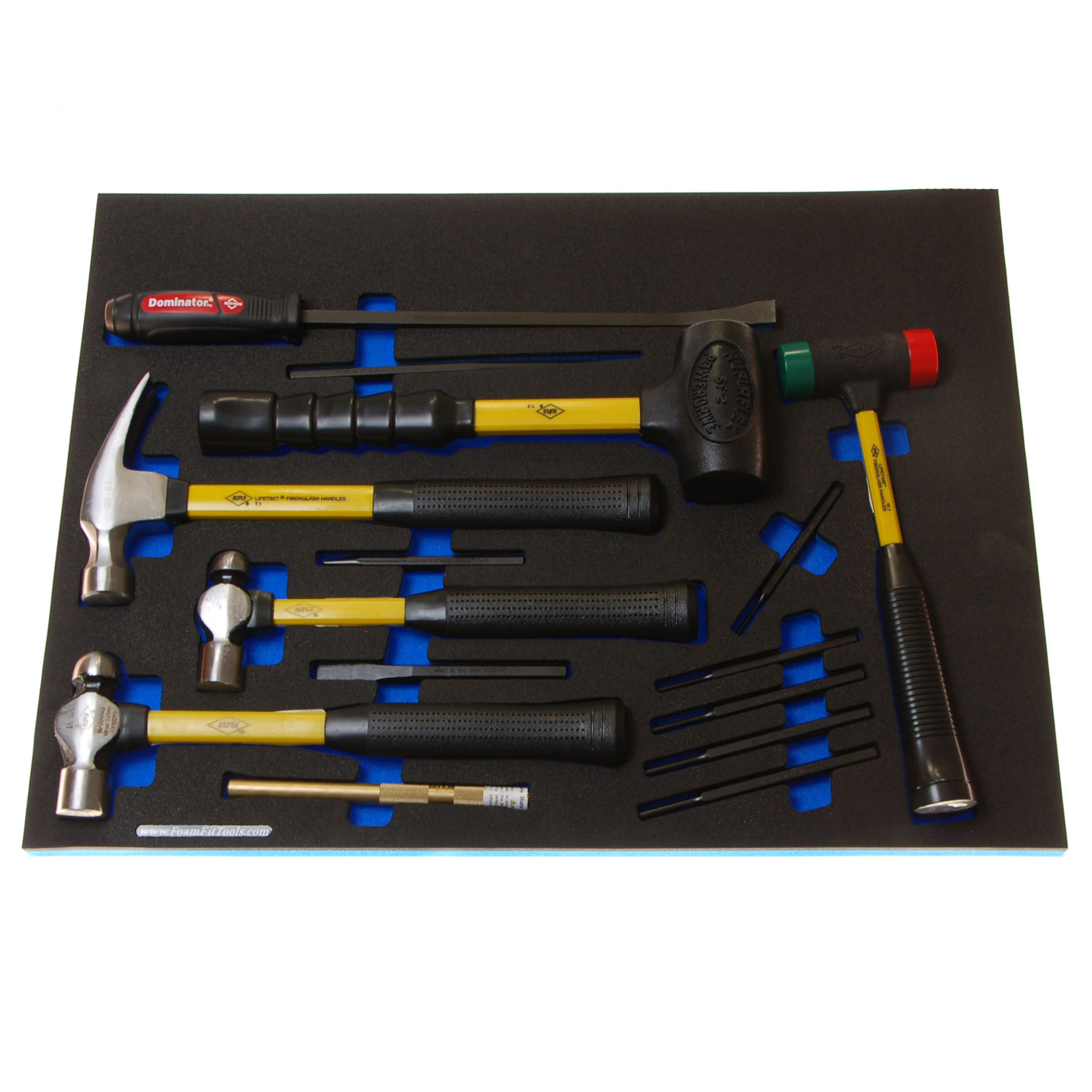

Precision CNC-cut to fit 15 Nupla and Mayhew tools:

12 oz ball pein (Nupla 21012)
16 oz ball pein (Nupla 21016)
16 oz quick change hammer (Nupla 09550)
1.5-inch red quick change tip (Nupla 15153)
1.5-inch green quick change tip (Nupla 15154)
20 oz rip claw hammer (Nupla 19020)
2 lb dead blow (Nupla Power Drive 10025)
12 inch pry bar, 17 inch overall (Mayhew Dominator 60144)
center punch, 3/8 X 5 inch (Mayhew #415, size 3/8)
line-up punch, 5/32 X 9 (Mayhew 22011, #466, size 5/32)
cold chisel, 1/2 X 6 (Mayhew #70, size 1/2)
pin punch, 1/8 X 4-3/4 (Mayhew #413, size 1/8)
pin punch, 5/32 X 5 (Mayhew #413, size 5/32)
pin punch, 3/16 X 5-1/4 (Mayhew #413, size 3/16)
pin punch, 7/32 X 5-1/2 (Mayhew #413, size 7/32)
pin punch, 1/4 X 5-3/4 (Mayhew #413, size 1/4)
brass drift punch, 1/2 X 7 (Mayhew 25076)

Tool Notes

This tool organizer was designed to fit a selection of Nupla hammers and Mayhew punches. We added another ball pein hammer plus more pin punches and a brass drift.

Drawing

Drawing F-05384-R.pdf

Printing the drawing at 100% scale can be an easy way to check if your tools will fit. Our drawings have multiple pages which can be printed on letter-size paper. Always change the printer setting from "fit" to 100%. If the border prints slightly too small, it is often due to this setting.

Drawer Size

23-3/4 X 17-3/4 inches (inside width by inside depth)

Drawer Height

Recommended for a drawer with at least 3 inches of vertical clearance.

Minimum Trimmable Size

It is possible to trim the margins to fit a smaller drawer. Trimmed tool organizers are not returnable. The minimum recommended size is:

22 X 15 inches

Contact customer service to order this organizer cut on a larger sheet or trimmed to a special size.

Features and Benefits

Standard Colors

black over red color combination blue over yellow color combination black over blue color combination

Special Colors

We make these colors in smaller batches, but they are often in stock. Contact customer service to order.

black over yellow color combination black over green color combination black over gray color combination

Additional Information

Each FoamFit insert is designed for shadowing a specific brand and set of tools. These organizers are made from high-quality tool foam with pockets precision-cut on our CNC routers.

The pockets are cut up to 1/2 inch deep in 3/4 inch thick tool foam, or up to 1 inch deep in 1-1/4 inch thick tool foam. Most inserts require less than 2 inches of height to fit in a 2-inch drawer (unless otherwise noted).

Our tool foam is two layers of closed-cell polyethylene foam. The contrasting top layer is thermally bonded to the bottom layer for maximum durability. The foam is resistant to most oils and fuels.
