Foam Tool Organizer for
5 Icon Ratchets with 25 Drive Tools

Overview

5 Icon Ratchets with 25 Drive Tools

Fits 5 ratchets, breaker bar, 3 sets of extensions, 4-pc drive adapter set, and 3-pc universal joint set.

Ratchets include 1/4-drive 90-tooth, 3/8-drive 90-tooth, 3/8 stubby, 3/8 flex head, and 1/2-drive 90-tooth.

Extensions include (6) 1/4-drive, (6) 3/8-drive, and (5) 1/2-drive.

New!

Drawer Size
22-1/4 X 19-3/8 inches

$65.90

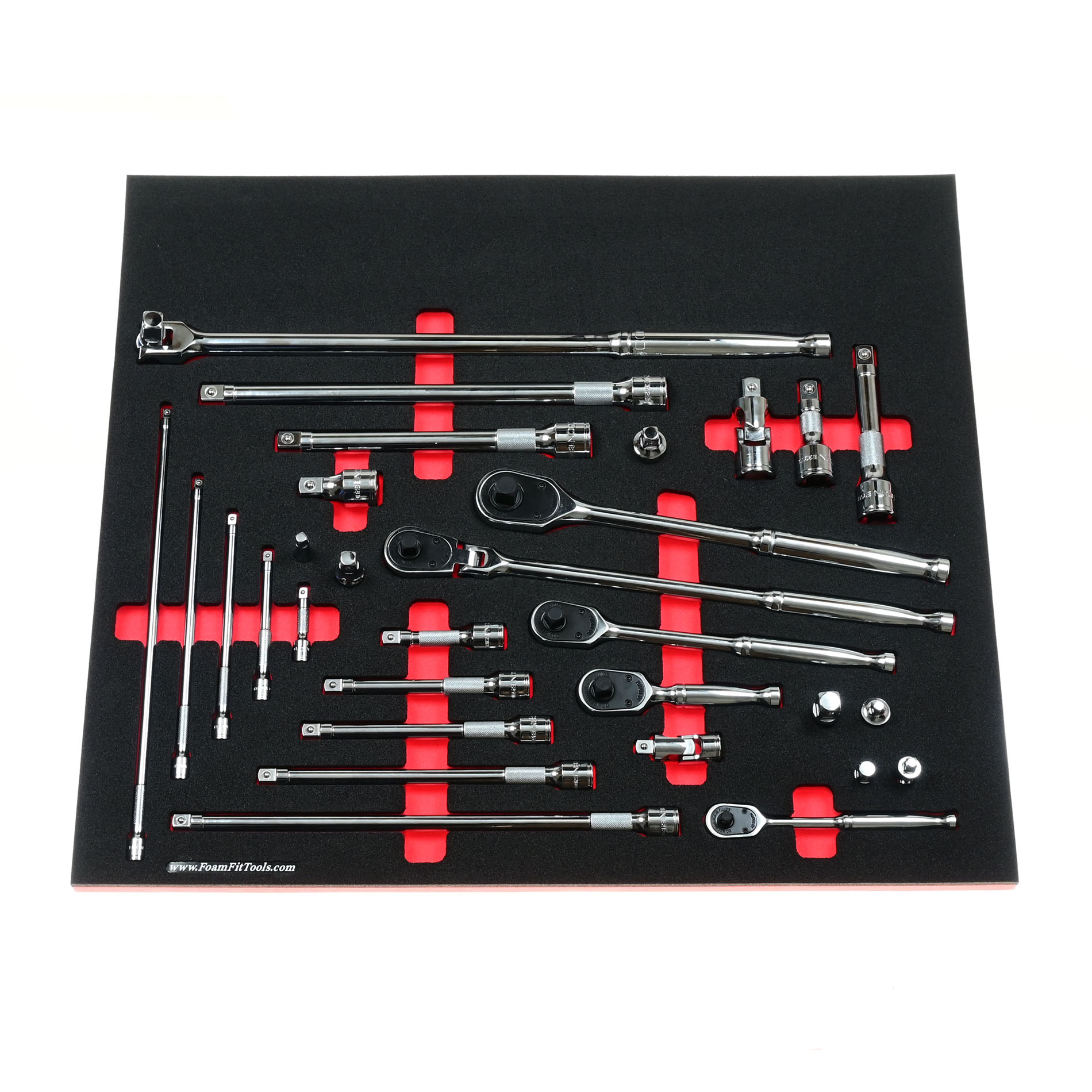

Foam Organizer for 5 Icon Ratchets with 25 Drive Tools

larger image

Foam Organizer for 5 Icon Ratchets with 25 Drive Tools

larger image

note: tools are not included

Tool List

Precision CNC-cut to fit 30 Icon tools:

ratchets
1/4 low-profile, 90-tooth, 6-inch (R1QR, 56188)
3/8 low-profile, 90-tooth, 9-1/16 (R2QR, 56193)
3/8 stubby, 90-tooth, 5-1/16 (R2ST, 56196)
3/8 flex-head, 90-tooth, 14-inch (R2LF, 58585)
1/2 low-profile, 90-tooth, 12-7/8 (R3S, 56340)

extension set, 6-pc (E1T-6, 58276)
1/4 X 1-1/2
1/4 X 2
1/4 X 4
1/4 X 6
1/4 X 8
1/4 X 12

extension set, 6-pc (E2T-6, 58274)
3/8 X 1-1/2
3/8 X 3
3/8 X 5
3/8 X 6
3/8 X 8
3/8 X 12

extension set, 5-pc (E3T-5, 58275)
1/2 X 2
1/2 X 3
1/2 X 5
1/2 X 8
1/2 X 12

1/2 X 18 breaker bar (B318, 63856)

adapter set, 4-pc (A123US-4, 57324)
1/4 to 3/8
3/8 to 1/4
3/8 to 1/2
1/2 to 3/8

universal joint, 3-pc (A123US-3, 57773)
1/4
3/8
1/2

Tool Notes

This tool organizer was designed to fit 5 Icon ratchets and a 1/2 X 18 breaker bar. We added 3 sets of extensions plus adapters and swivels. The foam size is found in 27 and 42-inch US General Series 3 boxes, but it can also be turned 90 degrees to fit the deeper drawers of Icon toolboxes. We shifted the tools to the front of the drawer leaving space for torque wrenches or other tools to be added along the back edge.

Drawing

Drawing F-05835-R.pdf

Printing the drawing at 100% scale can be an easy way to check if your tools will fit. Our drawings have multiple pages which can be printed on letter-size paper. Always change the printer setting from "fit" to 100%. If the border prints slightly too small, it is often due to this setting.

Drawer Size

22-1/4 X 19-3/8 inches (inside width by inside depth)

Drawer Height

Works in most drawers, needing no more than 2 inches of vertical clearance.

Minimum Trimmable Size

It is possible to trim the margins to fit a smaller drawer. Trimmed tool organizers are not returnable. The minimum recommended size is:

21-3/8 X 15-11/16 inches

Contact customer service to order this organizer cut on a larger sheet or trimmed to a special size.

Features and Benefits

Standard Colors

black over red color combination blue over yellow color combination black over blue color combination

Special Colors

We make these colors in smaller batches, but they are often in stock. Contact customer service to order.

black over yellow color combination black over green color combination black over gray color combination

Additional Information

Each FoamFit insert is designed for shadowing a specific brand and set of tools. These organizers are made from high-quality tool foam with pockets precision-cut on our CNC routers.

The pockets are cut up to 1/2 inch deep in 3/4 inch thick tool foam, or up to 1 inch deep in 1-1/4 inch thick tool foam. Most inserts require less than 2 inches of height to fit in a 2-inch drawer (unless otherwise noted).

Our tool foam is two layers of closed-cell polyethylene foam. The contrasting top layer is thermally bonded to the bottom layer for maximum durability. The foam is resistant to most oils and fuels.

Free Shipping!

For orders within the contiguous 48 US states.
