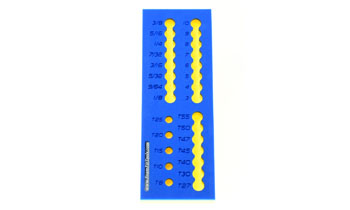

Foam Tool Organizer for
16 Icon Hex Bit Sockets with 12 Torx Bit Sockets

Overview

16 Icon Hex Bit Sockets with 12 Torx Bit Sockets

Fits two hex bit socket sets and one torx bit socket set.

Fits the 8-pc SAE hex bit set, 8-pc metric hex bit set, and the 12-pc torx set.

Sizes are permanently laser marked on the foam.

Recommended for 2-5/16 min drawer height.

Tool Notes

This tool organizer was designed to fit three Icon socket sets. We included permanent laser-marked sizes next to each socket. The hex bit sockets are 3/8-drive. The torx bit sockets are 1/4-drive and 3/8-drive. We cut the 1/4-drive sockets less deeply into the foam so you can easily grab the size you need. The tool sets needed to fill this organizer are S2HS-8 (59742), S2HM-8 (559738), and S12T-12 (59753).

Drawing

Drawing L-05870-T.pdf

Printing the drawing at 100% scale can be an easy way to check if your tools will fit. Our drawings have multiple pages which can be printed on letter-size paper. Always change the printer setting from "fit" to 100%. If the border prints slightly too small, it is often due to this setting.

Drawer Size

4-1/2 X 12-1/2 inches (inside width by inside depth)

Drawer Height

Recommended for a drawer with at least 2-5/16 inches of vertical clearance.

Minimum Trimmable Size

It is possible to trim the margins to fit a smaller drawer. Trimmed tool organizers are not returnable. The minimum recommended size is:

4-1/8 X 11-7/8 inches

Contact customer service to order this organizer cut on a larger sheet or trimmed to a special size.

Features and Benefits

• See what's missing at a glance.
• Anyone can return tools to the right spot.
• Closed-cell PE tool foam is durable and has great chemical resistance.

Standard Colors

Special Colors

We make these colors in smaller batches, but they are often in stock. Contact customer service to order.

Additional Information

Each FoamFit insert is designed for shadowing a specific brand and set of tools. These organizers are made from high-quality tool foam with pockets precision-cut on our CNC routers.

The pockets are cut up to 1/2 inch deep in 3/4 inch thick tool foam, or up to 1 inch deep in 1-1/4 inch thick tool foam. Most inserts require less than 2 inches of height to fit in a 2-inch drawer (unless otherwise noted).

Our tool foam is two layers of closed-cell polyethylene foam. The contrasting top layer is thermally bonded to the bottom layer for maximum durability. The foam is resistant to most oils and fuels.
