Foam Tool Organizer for
250 Quinn Sockets with 3 Ratchets and 17 Drive Tools

Overview

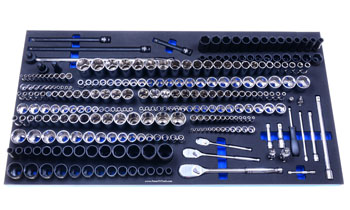

250 Quinn Sockets with 3 Ratchets and 17 Drive Tools

Fits four master socket sets including the 54-pc (1/4-drive), 72-pc (3/8-drive), and 83-pc (1/2-drive) chrome sets plus the 61-pc (1/2-drive) impact set.

Fits (112) inch sockets, (138) metric sockets, (3) ratchets, (10) extensions, and (7) additional drive tools.

Recommended for 3-9/16 min drawer height.

Tool Notes

This tool organizer was designed to fit four Quinn master socket sets. The chrome sets include the 1/4-drive set (70261) with 54 pieces, the 3/8-drive set (70317) with 72 pieces, and the 1/2-drive set (70253) with 83 pieces. The impact sockets are from the 1/2-drive set (58680) with 61 pieces. All the sockets are 6-point, and the ratchets are the longer 90-tooth ratchets. This organizer fits the top drawer of the 42-inch US General Series 3 roll cab. The foam can be trimmed, but measure your toolbox carefully and compare to the minimum trim down size.

Drawing

Drawing F-06148-T.pdf

Printing the drawing at 100% scale can be an easy way to check if your tools will fit. Our drawings have multiple pages which can be printed on letter-size paper. Always change the printer setting from "fit" to 100%. If the border prints slightly too small, it is often due to this setting.

Drawer Size

37-1/8 X 19-3/8 inches (inside width by inside depth)

Drawer Height

Recommended for a drawer with at least 3-9/16 inches of vertical clearance.

Minimum Trimmable Size

It is possible to trim the margins to fit a smaller drawer. Trimmed tool organizers are not returnable. The minimum recommended size is:

36-5/8 X 19-1/8 inches

Contact customer service to order this organizer cut on a larger sheet or trimmed to a special size.

Features and Benefits

• See what's missing at a glance.
• Anyone can return tools to the right spot.
• Closed-cell PE tool foam is durable and has great chemical resistance.

Standard Colors

Special Colors

We make these colors in smaller batches, but they are often in stock. Contact customer service to order.

Additional Information

Each FoamFit insert is designed for shadowing a specific brand and set of tools. These organizers are made from high-quality tool foam with pockets precision-cut on our CNC routers.

The pockets are cut up to 1/2 inch deep in 3/4 inch thick tool foam, or up to 1 inch deep in 1-1/4 inch thick tool foam. Most inserts require less than 2 inches of height to fit in a 2-inch drawer (unless otherwise noted).

Our tool foam is two layers of closed-cell polyethylene foam. The contrasting top layer is thermally bonded to the bottom layer for maximum durability. The foam is resistant to most oils and fuels.
