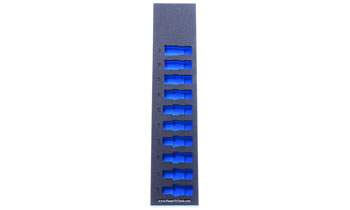

Foam Tool Organizer for
10 Icon 3/8-Drive Metric Impact Swivel Sockets

Overview

10 Icon 3/8-Drive Metric Impact Swivel Sockets

Fits the 10-piece set.

Fits sizes 10 to 19 mm. Only fits impact swivel sockets.

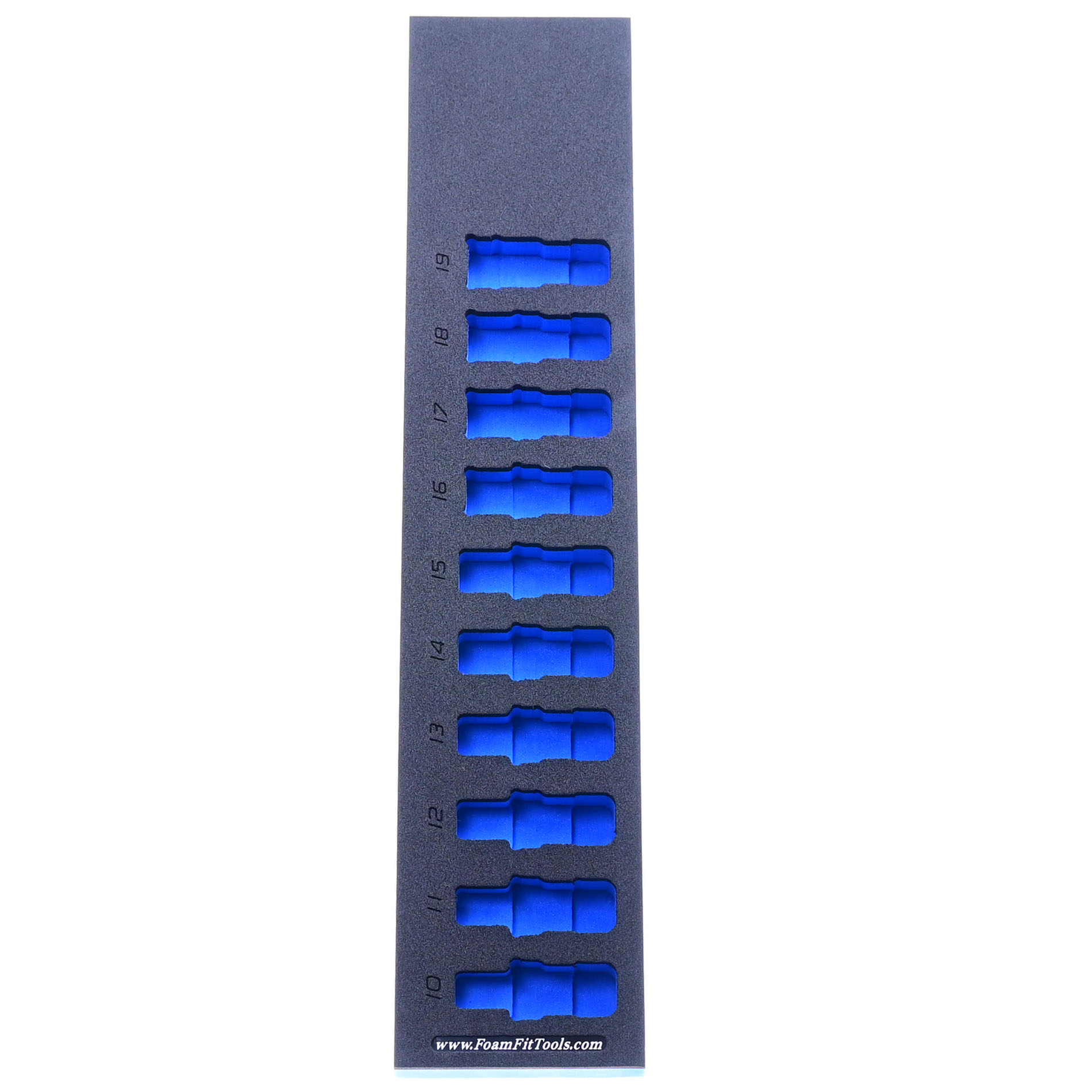

Sizes are permanently laser marked on the foam.

Tool Notes

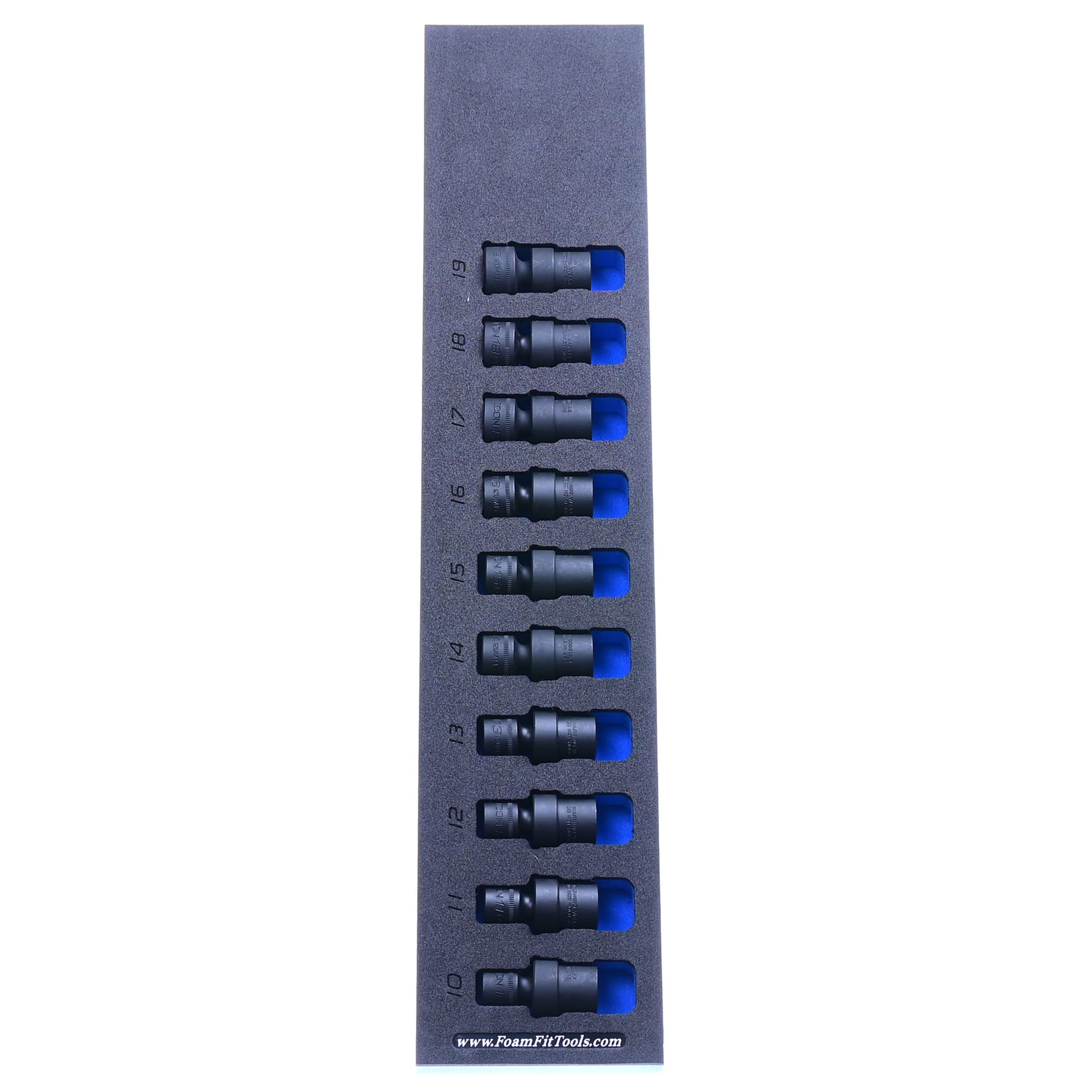

This tool organizer is designed to fit Icon impact swivel sockets. All are 3/8-drive, 6-point sockets, and the sizes are permanently laser-marked on the foam. The tool set to fill this organizer is Icon I2UM-10 (Harbor Freight 59747).

Drawing

Drawing L-06550-T.pdf

Printing the drawing at 100% scale can be an easy way to check if your tools will fit. Our drawings have multiple pages which can be printed on letter-size paper. Always change the printer setting from "fit" to 100%. If the border prints slightly too small, it is often due to this setting.

Drawer Size

4-1/2 X 21 inches (inside width by inside depth)

Drawer Height

Works in most drawers, needing no more than 2 inches of vertical clearance.

Minimum Trimmable Size

It is possible to trim the margins to fit a smaller drawer. Trimmed tool organizers are not returnable. The minimum recommended size is:

3-7/8 X 16-3/8 inches

Contact customer service to order this organizer cut on a larger sheet or trimmed to a special size.

Features and Benefits

• See what's missing at a glance.
• Anyone can return tools to the right spot.
• Closed-cell PE tool foam is durable and has great chemical resistance.

Standard Colors

Special Colors

We make these colors in smaller batches, but they are often in stock. Contact customer service to order.

Additional Information

Each FoamFit insert is designed for shadowing a specific brand and set of tools. These organizers are made from high-quality tool foam with pockets precision-cut on our CNC routers.

The pockets are cut up to 1/2 inch deep in 3/4 inch thick tool foam, or up to 1 inch deep in 1-1/4 inch thick tool foam. Most inserts require less than 2 inches of height to fit in a 2-inch drawer (unless otherwise noted).

Our tool foam is two layers of closed-cell polyethylene foam. The contrasting top layer is thermally bonded to the bottom layer for maximum durability. The foam is resistant to most oils and fuels.
