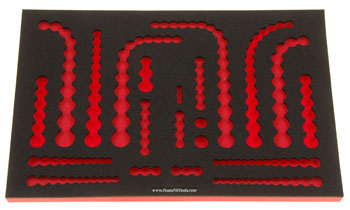

Foam Tool Organizer for
166 Craftsman Inch and Metric Sockets, Fits Version 2
Overview
166 Craftsman Inch and Metric Sockets, Fits Version 2
Fits (50) 1/4-drive sockets,
(81) 3/8-drive sockets,
and (35) 1/2-drive sockets.
Accommodates all sockets from version 2 of the 298-piece mechanics set CMMT12039. This version of the set is made in Taiwan.
Also fits the sockets from the 308-pc set CMMT45938.
Caution: Recommended for a 3-5/8 inch or deeper drawer.
Drawer Size
22-1/4 X 14-1/2 inches
$63.50
Details
- Drawer size: 22-1/4 X 14-1/2 inches (inside width by inside depth)
- Standard colors: black/red, blue/yellow, black/blue
- Made from closed-cell polyethylene tool foam.
- Precision CNC-cut to fit 166 Craftsman sockets:
(11) 1/4-drive 6-point sizes from 5/32 to 9/16
(10) 1/4-drive 6-point deep sizes from 5/32 to 9/16
(13) 1/4-drive 6-point sizes from 4 to 14 mm
(3) 1/4-drive torx bits from T15 to T25
(13) 1/4-drive 6-point deep sizes from 4 to 14 mm
(13) 3/8-drive 6-point sizes from 1/4 to 1
(11) 3/8-drive 6-point deep sizes from 1/4 to 7/8
(17) 3/8-drive 6-point sizes from 6 to 22 mm
(15) 3/8-drive 6-point deep sizes from 6 to 19, 21 mm
(3) 3/8-drive spark plug socket sizes 13/16, 3/4, 5/8
(3) 3/8-drive phillips bits
(3) 3/8-drive slotted bits
(6) 3/8-drive inch hex bits from 5/32 to 3/8
(6) 3/8-drive metric hex bits from 4 to 10
(4) 3/8-drive torx bits from T30 to T50
(11) 1/2-drive 12-point sizes from 3/8 to 1
(6) 1/2-drive 12-point deep sizes from 3/8 to 3/4
(10) 1/2-drive 12-point sizes from 13 to 24 mm
(6) 1/2-drive 12-point deep sizes from 14 to 19 mm
(2) 1/2-drive hex bits 14 and 17 mm
Free shipping on all orders within the contiguous 48 US states.
Made in the USA!
note: tools are not included
Tool Requirements
This tool organizer was designed to fit all the sockets from version 2 of the Craftsman 298-piece set CMMT12039. This version of the 298-pc set is made in Taiwan. It also fits the sockets from the Craftsman 308-pc set CMMT45938.
Possible Modifications
Minimum trimmable size:
20-3/8 X 13-7/8 inches
Note: Trimmed organizers are not returnable.
Contact customer service to order this organizer cut on a larger sheet or trimmed to a special size.
Colors by special request:
black/yellow, black/green, black/gray
contact customer service to order this organizer in a special color.
Drawing
Please verify this organizer fits your tools before placing an order.
- Download the drawing: www.FoamFitTools.com/product/F-04535-T.pdf
- Print the pages of the drawing full size or 100% (not fit).
- Check that the printout is full size by measuring the border with a ruler.
- Assemble the pages and place the printed drawing in your toolbox drawer.
- Place the tools over the printed outlines. Visually check that each tool fits within its outline.
Additional Information
Each FoamFit insert is designed for shadowing a specific set of tools. These organizers are made from high-quality tool foam with precision-cut pockets.
The pockets are cut up to 1/2 inch deep in 3/4 inch thick tool foam, or up to 1 inch deep in 1-1/4 inch thick tool foam. Most inserts require less than 2 inches of height to fit in a 2-inch drawer (unless otherwise noted).
Our tool foam is two layers of closed-cell polyethylene foam. The contrasting top layer is thermally bonded to the bottom layer for maximum durability. Three color combinations are available: black with red, blue with yellow, and black with blue. The foam is resistant to most oils and fuels.
