12 Foam Tool Organizers to Fit
Husky 1025-pc Set in 52-inch Toolbox #1
Toolbox model H52CH6TR9HD
Overview
Fits Husky Set H1025MTS into toolbox model H52CH6TR9HD
Uses 12 drawers. Lid compartment and 3 drawers are not used.
Please measure the toolbox to confirm the drawer sizes before ordering.
Organizers are also sold individually.
Exploded View Diagram (pdf)
Set of 12 Drawer Inserts
$997.40

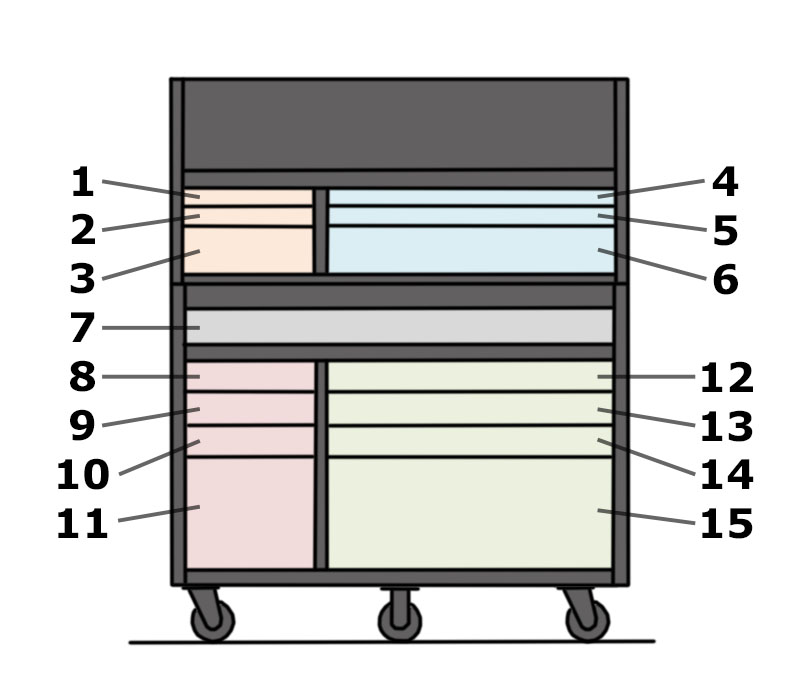

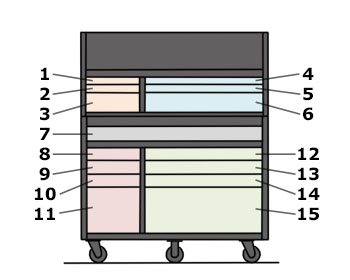

Suggested Drawer Arrangement
| Husky 52-inch 15-drawer toolbox (model H52CH6TR9HD) |
Husky 1025-pc Mechanic Tool Set (model H1025MTS) |
Organizer Number | Drawer Measurements (inches) |
| Drawer 1 | hex keys | F-03427-R | 13-5/8 X 19-1/8 X 2 |
| Drawer 2 | empty | 13-5/8 X 19-1/8 X 2 | |
| Drawer 3 | impact sockets | F-03428-T | 13-5/8 X 19-1/8 X 5 |
| Drawer 4 | screwdrivers | F-03429-R | 31-1/2 X 19-1/8 X 2 |
| Drawer 5 | metric combination wrenches | F-03430-R | 31-1/2 X 19-1/8 X 2 |
| Drawer 6 | inch combination wrenches | F-03431-R | 31-1/2 X 19-1/8 X 5 |
| Drawer 7 | sockets | F-03207-T | 47-1/2 X 18-1/2 X 3-1/2 |
| Drawer 8 | box wrenches | F-03433-R | 13-1/2 X 18-1/2 X 3-1/2 |
| Drawer 9 | inch crow foot wrenches | F-03435-R | 13-1/2 X 18-1/2 X 3-1/2 |
| Drawer 10 | metric crow foot wrenches | F-03434-R | 13-1/2 X 18-1/2 X 3-1/2 |
| Drawer 11 | empty | 13-1/2 X 18-1/2 X 13 | |
| Drawer 12 | drive tools & extensions | F-03436-R | 31-3/8 X 18-1/2 X 3-1/2 |
| Drawer 13 | inch ratcheting wrenches | F-03437-T | 31-3/8 X 18-1/2 X 3-1/2 |
| Drawer 14 | metric ratcheting wrenches | F-03438-T | 31-3/8 X 18-1/2 X 3-1/2 |
| Drawer 15 | empty | 31-3/8 X 18-1/2 X 13 |
Notes:
This configuration uses 12 drawers to fit all the tools, leaving 3 drawers and the top compartment empty.
Many of the wrenches are placed on edge to save space. The drawer inserts cover 5,700 square inches total.
The full-width drawer contains sockets and some drive tools. The other ratchets and drive accessories are one drawer down. The impact sockets are one drawer above the full-width drawer.
Two drawers of combination wrenches are placed in the top chest along with screwdrivers and hex keys. The ratcheting wrenches are placed in the bottom cabinet.
Drawer dimensions can vary. Please measure your toolbox before ordering.
Looking for More? Please email your idea today. We appreciate your input.
